Model No.	BMPH100
Displacement	100cc
Speed	615/770rpm
Torque	182/227 Nm
Max Power	11/13KW
Max Flow	60/75LPM
Highlight	charlynn 101-1195-009 hydraulic gerotor motor, 100cc hydraulic gerotor motor

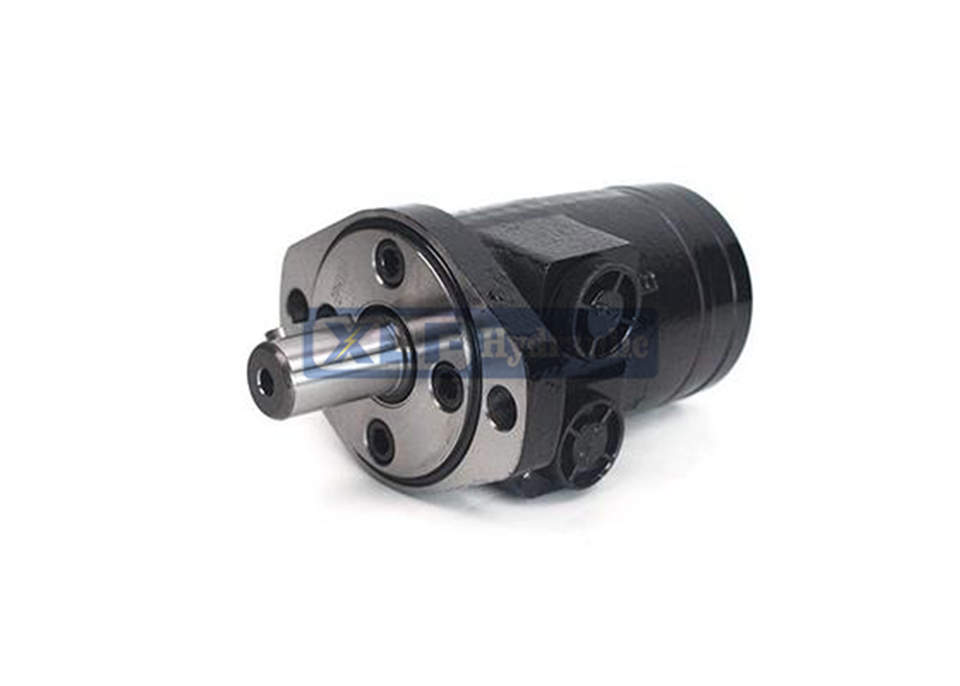

Charlynn 101-1195-009 is a gerotor hydraulic motor with a displacement of 100cc, and it is a core product of the Charlynn (now a subsidiary of Eaton) 4000 series. It adopts the classic two-bolt diamond flange mounting method and is specially designed to provide high starting and running torque under low-speed working conditions. This motor is renowned for its compact structure, sturdiness, durability, and high power density, making it an ideal direct replacement power source for driving travel, rotation, or working mechanisms in numerous mobile and industrial hydraulic equipment.

1. Excellent low-speed and high-torque performance: Based on an efficient Gerotor design, it can generate extremely high mechanical torque at low rotational speeds, making it particularly suitable for directly driving heavy loads.

2. Robust and durable structure: The housing is sturdy, with few internal moving parts and low friction loss, enabling it to maintain a long service life and reliability under harsh working conditions (such as impact loads).

3. Compact and highly versatile installation: The unique double-bolt diamond flange design minimizes the required installation space, while having wide universality across numerous devices, which is the key to achieving direct replacement.

4. Excellent starting and running stability: High starting torque efficiency ensures that the load can respond immediately, and it runs smoothly without crawling even at very low speeds.

This motor is the preferred choice for many devices that require a compact structure and strong power. Common applications include:
• Agricultural machinery: the cutting table of combine harvesters, mixers, ground wheel drives of seeders, and fertilizer applicators.
• Construction machinery: crawler drives of small excavators, vibrating wheels of road rollers, and concrete trowels.
• Material handling: conveyor belt drives, winches, and hoists.
• Special vehicles: wheel drives of aerial work platforms and lawn care equipment.
• Industrial equipment: valve drives, mixing devices, and automated rotating mechanisms.
